Dimensions: Overall Dimensions: 24”W x 20”D x 45”H or 610mm Wide x 510mm Deep x 1143mm High. Paper Stop Dimensions: 18"W x 5/8"H x 1/4"Thick
Weight: 59 Lbs. (27 kg)
Material: ¼” Thick Aluminum Plate
Finish: Powder Coated
Stain or Color Information:
Color: Light Aluminum Grey
Fabric Colors:
Stock Status:
- Available - Please review Lead Times
Assembly Instructions:
Assembly Required
Assembly Tools Included
Features:
Top plate that can accept up to (4) Microphones and (1) Reading Lamp
Secondary Shelf below the Reading Plate
Base Plate with Grommet
Options:
LED Reading Light SIG U6
Clock SIG B11
Dust Cover SIG F1
Dolly Option SIG H1
Audio Cable 25 ft SIG N25

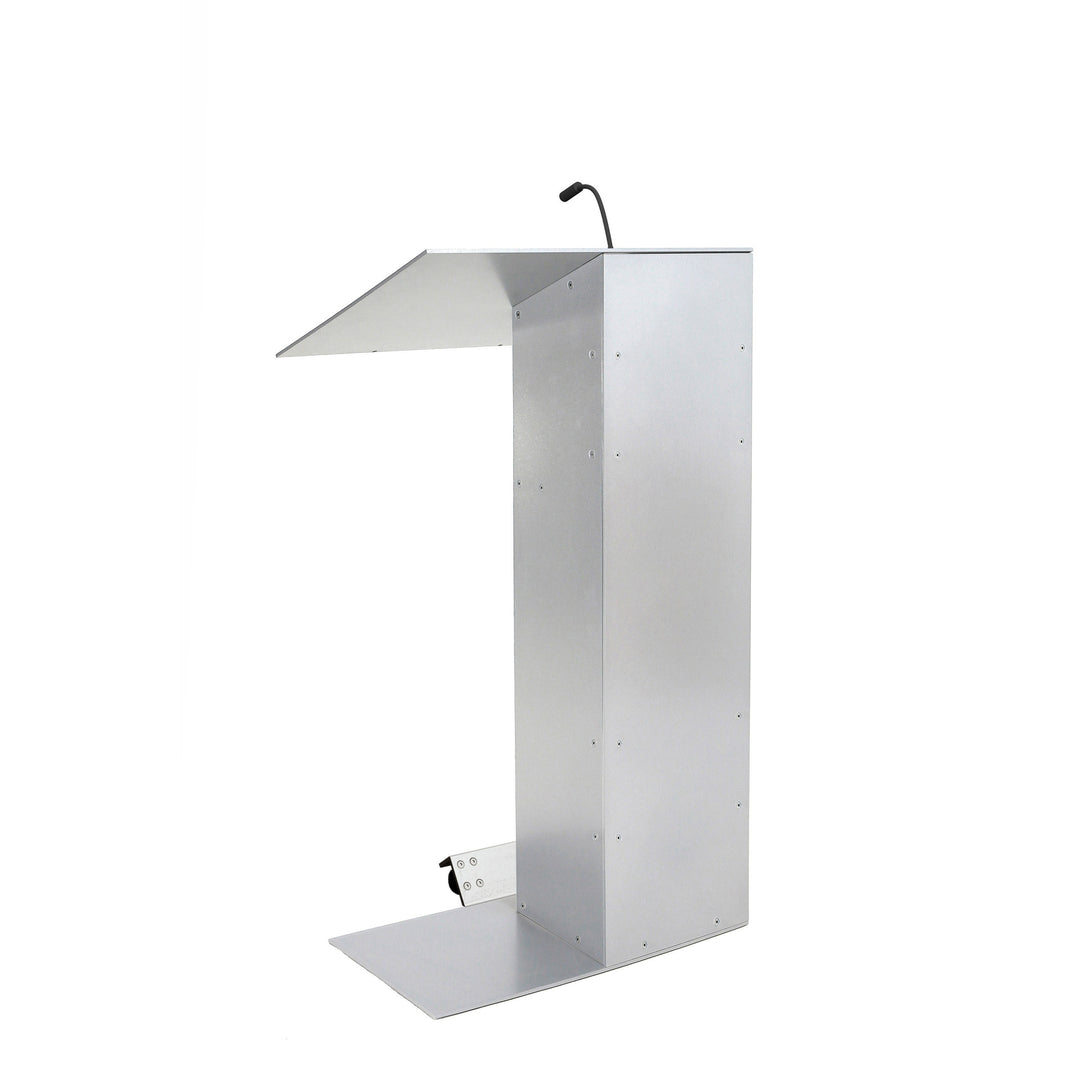

Base with Wheels SIG H2
Gooseneck Microphone CM15P SIG O3
Microphone Holder W/Clip SIG B3
Microphone Connector SIG B2
Grommet SIG B5
Microphone Shock Mount Connector SIG B4
NOTE: If SIG O3, Gooseneck Microphone is ordered, the SIG B2, Microphone Connector or SIG B4, Shock Mount Microphone Connector is required.
NOTE: If a Handheld Microphone is to be used, the SIG B3, Microphone Holder with Universal Clip is required.
Technical Specifications:
SIG U6 Reading Light -
On-Off switch with dimmer
LED reading light (120/240V) module with a 15 cm (6") articulated arm.
Cable runs down inside the lectern.
The lamp is installed on a small plate that you screw to the lectern's top (pre-drilled location).
SIG O3 Goose-Neck Microphone CM15P -
It features an XLR3 connector, an elegant 375 mm (15") long articulated arm and includes a Snap-fit foam windscreen.
SIG N25 Audio Cable -
The connectors are black with gold contacts.
24 AWG pure copper conductors, a densely woven spiral shield, and a thick PVC jacket .
SIG B3 Microphone Holder w/Clip Option-
The microphone wiring, if any, goes down beside the lectern, not through it.
The holder is installed on a small plate that you screw (2 screws) to the lectern's top.
SIG B8 Microphone Holder w/ K & M Clip -
The clip accepts microphones of sizes 34 mm - 40 mm (wired or wireless microphone).
The microphone wiring, if any, goes down beside the lectern, not through it.
The holder is installed on a small plate that you screw (2 screws) to the lectern's top.
SIG B2 Microphone Connector -
You will need this connector to connect your microphone.
The connector is a female XLR connector that lets you clip in a gooseneck microphone.
It includes the connector itself and a 90 cm (36") audio cable that goes down inside the lectern.
The connector is installed on a small plate that you screw (2 screws) to the lectern's top.
SIG B5 Grommet -
The grommet has an opening of 45mm (1-3/4").
The grommet is a small plate that fits on the lectern's top.
SIG B9 HDMI Connector Module -
The connector lets you clip any HDMI devices
Includes a 90 cm (36") HDMI cable that runs down the lectern.
The connector is installed on a small plate that you screw (2 screws) to the lectern's top.
SIG B4 Microphone Shock Mount Connector -
The connector lets you clip in a gooseneck microphone.
It includes the shock mount A400SM from Shure 90 cm (36") XLR audio cable that runs down the lectern.
The connector is installed on a small plate that fits on the lectern's top.
